N

N connectors are available with 50Ohm and 75Ohm impedance operating to 11GHz on semi-rigid cable. N connectors have variety of clamp and solder types.

Selection Matrix
Gender
Orientation
Cable Group
Panel
Impedance

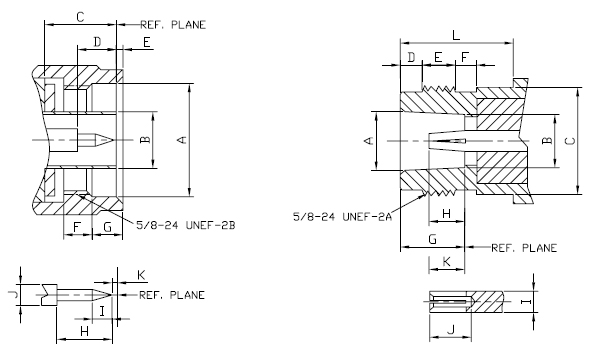

Interface Mating Dimensions Technical Data

Male Femal
LTRMillimeters / Inches
MinimumMaximum
A Φ16.0 Φ.630
B     Φ8.38 Φ.330
C 10.11 .398 10.46 .412
D 5.33 .210 5.84 .230
E 0.41 .016 1.52 .060
F 4.50 / .177 full thread min.
G 4.01 .158 4.27 .168
H 5.33 .210
I 2.80 .110 3.56 .140
J Φ1.60 Φ.063 Φ1.68 Φ.066
K 0.08 .003
LTRMillimeters / Inches
MinimumMaximum
A Φ8.53 Φ.336 Φ8.74 Φ.344
B Φ8.03 Φ.316 Φ8.13 Φ.320
C     Φ15.93 Φ.627
D 1.19 .047 1.96 .077
E 4.37 .172 5.13 .202
F 1.19 .047 1.96 .077
G 9.04 .356 9.19 .363
H 4.75 .187 5.26 .207
I Φ3.00 Φ.118 Φ3.15 Φ.124
J 5.33 .210
K 4.75 .187 5.26 .207
L 10.72 .422

Electrical:

Nominal impedance50 Ω
Frequency up to11GHz
VSWR1.15 + 0.02f x GHz max.
Working voltage500 Volts rms.
Dielectric withstanding voltage2500 Volts rms.
Insulation resistance5000 MΩ min.
Contact resistancecenter conductor 1.5 mΩ
outer conductor 1.5 Mω

Mechanical&Environmental:

Mating"5/8""-24 UNEF thread coupling"
Cable retention10 kgf typical
Durability≥ 500 cycles
Coupling nut retention20 kgf min.
Temperature range-55℃ to 155℃
VibrationPer MIL-STD-202 Method 204 Test Condition D
CorrosionPer MIL-STD-202 Method 101 Test Condition B

Material/Finish:

 MaterialFinish
Connector bodyBrass per(QQ-B-626 or JIS-C3604B)Nickel or Tril-alloy plating
Center contact maleBrass per(QQ-B-626 or JIS-C3604B)Gold plating
Center contact femaleBeryllium copper per(QQ-C-530 or JIS-C1730) or
Phosphor bronze per(QQ-B750 or JIS-C5441B)		Gold plating
InsulatorPTFENone
Crimp ferruleAnnealed copperSame as body
GasketSilicone rubberNone
