FME

FME connectors were originally developed for European wireless market, but have recently seen an increase in popularity globally.

Applications are in the GPS, mobile and WLAN sectors of the communications industry.

Selection Matrix
Gender
Orientation
Cable Group
Panel
Impedance

Male Femal

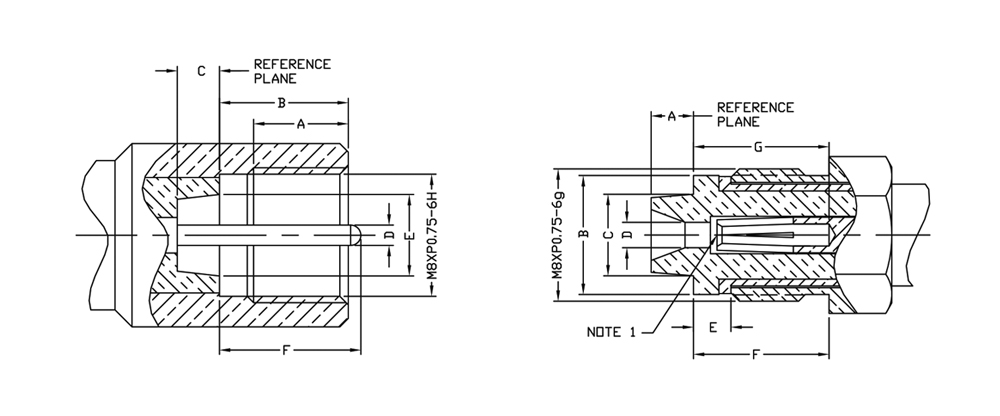

LTRMillimeters / Inches
MinimumMaximum
A 5.59 .220
B 7.57 .298 7.62 .300
C 2.49 .098
D 1.17 .046 1.23 .048
E 4.8 .189 .315
F 8.00
LTRMillimeters / Inches
MinimumMaximum
A 2.50 .098
B 7.00 .276
C 4.80 .189
D 1.30 .051
E 2.20 .087
F 8.00 .315
G 8.00 .315

Electrical:

IMPEDANCE50 Ω
WORKING VOLTAGE RATING335 VRMS @SEA LEVEL
FREQUENCY RANGE0-2 GHZ

Mechanical&Environmental:

MATINGM8XP .75 THREAD
