SSMCX

This SSMCX connectors are approximately 35% smaller than MMCX connectors. It can use in small space and inner box, and which designed for electronic applications with size and weight limitations while maintaining good RF characteristics.

Selection Matrix
Gender
Orientation
Cable Group
Panel
Impedance

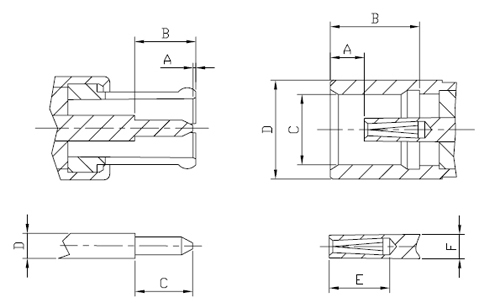

Interface Mating Dimensions Technical Data

Male Femal
LTRMillimeters / Inches
MinimumMaximum
A 0.00 .000 0.25 .001
B 1.23 0.48 1.73 .068
C 1.30 0.51 1.50 .059
D Ø0.57 Ø.022 Ø0.63 Ø.025
LTRMillimeters / Inches
MinimumMaximum
A 0.60 .024 1.10 0.43
B 2.08 .082 2.32 .091
C Ø1.75 Ø.069 Ø1.85 Ø.073
D Ø2.45 Ø.096 Ø2.55 Ø.100
E 1.50 .059 1.80 .071
F Ø0.57 Ø.022 Ø0.63 Ø.025

Electrical:

Nominal impedance50 Ω
Frequency up to6 GHz
VSWR1.30 max @ 1-3GHz
1.50 max @ 3-6GHz
Working voltage250 Volts rms.
Dielectric withstanding voltage500 Volts rms.
Insulation resistance1000 MΩ min.
Contact resistancecenter conductor 5.0 Mω
outer conductor 3.0 Mω

Mechanical&Environmental:

MatingSnap on coupling
Cable retention2.5 kgf typical
Engage force≤2.0kgf
Disengage force0.5 to 2.0kgf
Durability≥ 500 cycles
VibrationPer MIL-STD-202 Method 204 Test Condition D
CorrosionPer MIL-STD-202 Method 101 Test Condition B

Material/Finish:

 MaterialFinish
Connector bodyBrass per(QQ-B-626 or JIS-C3604B)Gold plating
Center contact maleBrass per(QQ-B-626 or JIS-C3604B)Gold plating
Center contact femaleBeryllium copper per(QQ-C-530 or JIS-C 1730)Gold plating
InsulatorPTFENone
