SSMP

SSMP is micro-subminiature connectors and offers high performance from DC - 65 GHz, it is 30% smaller than SMP, SSMP is designed for high frequency applications where space and package density are a necessary.

Selection Matrix
Gender
Orientation
Cable Group
Panel
Impedance

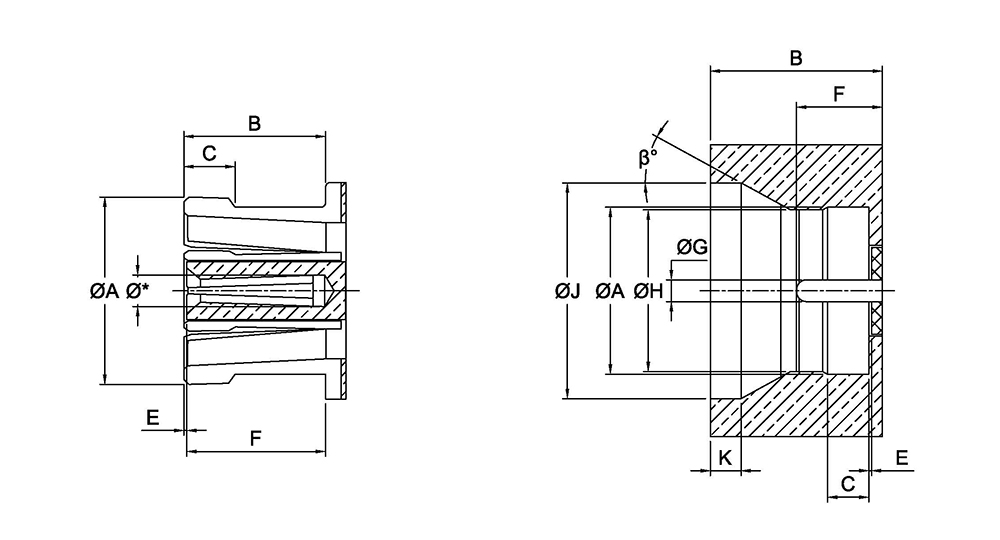

Interface Mating Dimensions Technical Data

Male Femal
LTRMillimeters / Inches
MinimumMaximum
A 2.41 .095
B 1.73 .068
C 0.58 .023
E 0.20 .008
F 1.27 .050
LTRMillimeters / Inches
MinimumMaximum
A 2.18 .086 2.24 .088
B 2.08 .082 2.13 .084
E 0.53 .021 0.58 .023
F 0 0 0.12 .004
G 0.76 .030 1.14 .045
H 0.28 .011 0.33 .013
I 2.11 .083 2.16 .085
J 2.82 .111 2.92 .115
K 0.25 .010 0.56 .022
β 25 35

Electrical:

Frequency range DC - 65 GHz
Impedance50 Ω
V.S.W.R.
• Straight styles
• Right angle styles
• Adapters
• Hermetic receptacles
1.10 to 12GHz / 1.15 to 26GHz /1.30 to 40GHz
1.25 to 12GHz /1.30 to 18GHz
1.10 to 12GHz / 1.20 to 40GHz / 1.30 to 65GHz
1.15 to 18GHz / 1.35 to 40GHz
Insertion loss (dB)0.10 × √F Max typ
Insulation resistance (mΩ)5000
Voltage rating (V.R.M.S.)335
Dielectric withstanding voltage (V.R.M.S.)500
RF leakage (dB)-80 to 3GHz / -65 from 3 to 40GHz

Mechanical&Environmental:

Radial misalignment+/- .010 inches
VibrationMIL-STD-202, Method 204, Cond. D
ShockMIL-STD-202, Method 213, Cond. I
Cable retention (N)
.47"
.85"
> 45 N
>200N
Contact captivation axial (N)6.7
Operating temperature-65°C / +165°C

Material/Finish:

 MaterialFinish
Cable connector with female center contactBeryllium copperGold
Cable connector with male center contact
Bodies
Soldering Part		Stainless steel,
Beryllium copper 		Passivated
Gold
Receptacles, shroudsstainless steel&Beryllium copper Passivated
Center contactsBeryllium copperGold
Center contacts for glass sealIron nickel cobalt sealing alloy
InsulatorsPeek / PTFE
