F

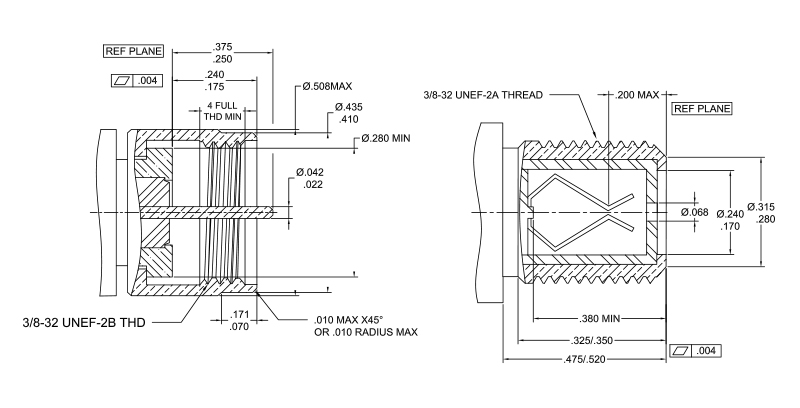

F series are economically priced connectors specially designed for using with NTSC TV ANTENNA, MATV, and satellite communication applications.

Countries using the NTSC system include: The Bahama Islands, Canada, America, Japan, Korea, Mexico,Taiwan, the Philippines, and the U.S.A.

Selection Matrix
Gender
Orientation
Cable Group
Panel
Impedance

Electrical:

Impedance75Ohm
Impedance75Ohm
Frequency range0-2 GHz
Working voltage250 VRMS Max.
Dielectric withstanding voltage500 VRMS Min.
VSWR1.35 Max.
Contact resistanceCenter contact: 5 Milliohms Max.

Outer contact: 2 Milliohms Max.
Insulator resistance1000 Megohms min.

Material/Finish:

 MaterialFinish
Body, Metal partsBrass per QQ-B-626Nickel 70 micro-inches
Center contactMale: Brass per QQ-B-626

Female:Phosphor Bronze per QQ-B-750
Gold 3 micro-inches

Gold 3 micro-inches
InsulatorsTeflon, DelrinNone
Crimp ferrulesAnnealed BrassNickel 70 micro-inches
Clamp GasketsSynthetic rubberNone
